YOLO to ONNX

### init
# !pip install -r https://raw.githubusercontent.com/ultralytics/yolov5/master/requirements.txt
import json
import base64
from io import BytesIO
import os
from datetime import datetime
from glob import glob
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from PIL import Image, ImageDraw, ImageFont
import torch
import torch.onnx
import onnx
import onnxruntime

# 推論用画像
paths = sorted(glob('mask_data/test_answer/images/*.png'))
print(len(paths))
# 画像の読み込み
imgs = []
for p in paths:
    img = Image.open(p)
    imgs.append(img)

300

Prediction with PyTorch

# モデルサイズ確認
print('Size (MB):', os.path.getsize('yolov5_best.pt')/1e6)

Size (MB): 14.465205

# 学習済みモデルの読み込み
model = torch.hub.load('ultralytics/yolov5', 'custom', path='yolov5_best.pt', device='cpu')
print(model.training)

Using cache found in /Users/taichinakabeppu/.cache/torch/hub/ultralytics_yolov5_master
YOLOv5 🚀 2022-4-28 torch 1.9.0 CPU

Fusing layers...
[W NNPACK.cpp:79] Could not initialize NNPACK! Reason: Unsupported hardware.
Model summary: 213 layers, 7018216 parameters, 0 gradients, 15.8 GFLOPs
Adding AutoShape...

True

# 推論
start = datetime.now()
model.eval()
with torch.no_grad():
    # バッチ処理
    results = model(imgs)
end = datetime.now()
# 所要時間
print('Runtime =', end-start)

Runtime = 0:03:01.582600

# 結果格納
results_df = pd.DataFrame()
for p, n in zip(paths, range(len(results))):
    df_ = results.pandas().xyxy[n]
    p = p.replace('mask_data/test_answer/images/', '')
    df_.insert(0, 'file', p)
    results_df = pd.concat([results_df, df_])
results_df['xmin'] = results_df['xmin'].astype('int')
results_df['ymin'] = results_df['ymin'].astype('int')
results_df['xmax'] = results_df['xmax'].astype('int')
results_df['ymax'] = results_df['ymax'].astype('int')
results_df = results_df.drop('class', axis=1).rename(columns={'name': 'class'}).reset_index(drop=True)
results_df

	file	xmin	ymin	xmax	ymax	confidence	class
0	maksssksksss500.png	110	230	211	369	0.959684	with_mask
1	maksssksksss501.png	354	64	400	132	0.948252	with_mask
2	maksssksksss501.png	45	37	117	126	0.948185	with_mask
3	maksssksksss501.png	301	51	349	117	0.945372	with_mask
4	maksssksksss501.png	164	47	219	123	0.943369	with_mask
...	...	...	...	...	...	...	...
1422	maksssksksss799.png	86	239	131	284	0.914433	with_mask
1423	maksssksksss799.png	30	64	46	80	0.914345	with_mask
1424	maksssksksss799.png	317	248	333	265	0.897670	with_mask
1425	maksssksksss799.png	340	248	365	274	0.892757	with_mask
1426	maksssksksss799.png	304	209	324	230	0.858823	with_mask

1427 rows × 7 columns

# %%capture
# !if [ ! -d fonts ]; then mkdir fonts & cd fonts & wget https://noto-website-2.storage.googleapis.com/pkgs/NotoSansCJKjp-hinted.zip & unzip NotoSansCJKjp-hinted.zip & cd .. ;fi

def visualize_results(results, image_path, threshold=0.4):
    image= Image.open(image_path)
    class_names = ['with_mask', 'mask_weared_incorrect', 'without_mask']
    cmap = plt.cm.get_cmap('hsv', len(class_names) + 1)

    prediction = results.numpy()
    boxes = []
    labels = []
    for pred in prediction:
        confidence = pred[4]
        if confidence >= threshold:
            boxes.append(pred[:4])
            labels.append(pred[-1].astype('int'))

    draw = ImageDraw.Draw(image)
    font = ImageFont.truetype('fonts/NotoSansCJKjp-Bold.otf', 10)
    for box, label in zip(boxes, labels):
        color = cmap(label, bytes=True)
        # box
        draw.rectangle(box, outline=color)
        # label
        text = class_names[label]
        w, h = font.getsize(text)
        draw.rectangle([box[0], box[1], box[0]+w, box[1]+h], fill=color)
        draw.text((box[0], box[1]), text, font=font, fill='white')

    return image

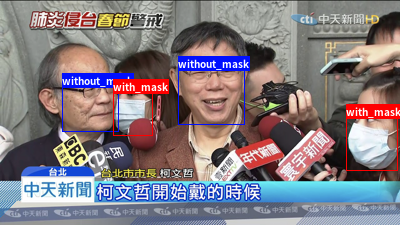

n = 2
visualize_results(results.xyxy[n], paths[n])

Export ONNX

# 学習済みモデルの読み込み
model = torch.hub.load('ultralytics/yolov5', 'custom', path='yolov5_best.pt', device='cpu')

Using cache found in /Users/taichinakabeppu/.cache/torch/hub/ultralytics_yolov5_master
YOLOv5 🚀 2022-4-28 torch 1.9.0 CPU

Fusing layers...
Model summary: 213 layers, 7018216 parameters, 0 gradients, 15.8 GFLOPs
Adding AutoShape...

# ONNX 変換
def Export_ONNX(model):
    model.eval()
    dummy_input = torch.randn(1, 3, 640, 640, requires_grad=True)
    # Export the model
    torch.onnx.export(
        model,         # model being run
        dummy_input,       # model input (or a tuple for multiple inputs)
        "yolo.onnx",       # where to save the model
        verbose=False,
        export_params=True,  # store the trained parameter weights inside the model file
        opset_version=11,    # the ONNX version to export the model to
        do_constant_folding=True,  # whether to execute constant folding for optimization
        input_names=['images'],   # the model's input names
        output_names=['output'], # the model's output names
        dynamic_axes={
            'images': {
                0: "batch_size",
                2: "height",
                3:"width"}, # shape(1, 3, 640, 640)
            'output': {0: 'batch'}
        }
        )
    # Checks
    model_onnx = onnx.load('yolo.onnx')  # load onnx model
    onnx.checker.check_model(model_onnx)

    # Metadata
    d = {'stride': int(model.stride), 'names': model.names}
    for k, v in d.items():
        meta = model_onnx.metadata_props.add()
        meta.key, meta.value = k, str(v)
    onnx.save(model_onnx, 'yolo.onnx')
    print(" ")
    print('Model has been converted to ONNX')

Export_ONNX(model)

/Users/taichinakabeppu/.cache/torch/hub/ultralytics_yolov5_master/models/yolo.py:62: TracerWarning: Converting a tensor to a Python boolean might cause the trace to be incorrect. We can't record the data flow of Python values, so this value will be treated as a constant in the future. This means that the trace might not generalize to other inputs!
  if self.onnx_dynamic or self.grid[i].shape[2:4] != x[i].shape[2:4]:

Model has been converted to ONNX

Prediction with ONNX Model

# サイズ確認
print('Size (MB):', os.path.getsize('yolo.onnx')/1e6)

Size (MB): 28.142366

# ONNX モデル読み込み
onnx_model = torch.hub.load('ultralytics/yolov5', 'custom', path='yolo.onnx', device='cpu')
print(onnx_model.training)

Using cache found in /Users/taichinakabeppu/.cache/torch/hub/ultralytics_yolov5_master
YOLOv5 🚀 2022-4-28 torch 1.9.0 CPU

Loading yolo.onnx for ONNX Runtime inference...
Adding AutoShape...

True

start = datetime.now()
onnx_model.eval()
with torch.no_grad():
    # バッチ処理
    results = onnx_model(imgs)
end = datetime.now()
print('Runtime =', end-start)

Runtime = 0:02:03.549016

onnx_results_df = pd.DataFrame()
for p, n in zip(paths, range(len(results))):
    df_ = results.pandas().xyxy[n]
    p = p.replace('mask_data/test_answer/images/', '')
    df_.insert(0, 'file', p)
    onnx_results_df = pd.concat([onnx_results_df, df_])
onnx_results_df['xmin'] = onnx_results_df['xmin'].astype('int')
onnx_results_df['ymin'] = onnx_results_df['ymin'].astype('int')
onnx_results_df['xmax'] = onnx_results_df['xmax'].astype('int')
onnx_results_df['ymax'] = onnx_results_df['ymax'].astype('int')
onnx_results_df = onnx_results_df.drop('class', axis=1).rename(columns={'name': 'class'}).reset_index(drop=True)
onnx_results_df

	file	xmin	ymin	xmax	ymax	confidence	class
0	maksssksksss500.png	110	230	211	369	0.959685	with_mask
1	maksssksksss501.png	354	64	400	132	0.948251	with_mask
2	maksssksksss501.png	45	37	117	126	0.948185	with_mask
3	maksssksksss501.png	301	51	349	117	0.945373	with_mask
4	maksssksksss501.png	164	47	219	123	0.943369	with_mask
...	...	...	...	...	...	...	...
1422	maksssksksss799.png	86	239	131	284	0.914434	with_mask
1423	maksssksksss799.png	30	64	46	80	0.914345	with_mask
1424	maksssksksss799.png	317	248	333	265	0.897670	with_mask
1425	maksssksksss799.png	340	248	365	274	0.892757	with_mask
1426	maksssksksss799.png	304	209	324	230	0.858823	with_mask

1427 rows × 7 columns

results_df

	file	xmin	ymin	xmax	ymax	confidence	class
0	maksssksksss500.png	110	230	211	369	0.959684	with_mask
1	maksssksksss501.png	354	64	400	132	0.948252	with_mask
2	maksssksksss501.png	45	37	117	126	0.948185	with_mask
3	maksssksksss501.png	301	51	349	117	0.945372	with_mask
4	maksssksksss501.png	164	47	219	123	0.943369	with_mask
...	...	...	...	...	...	...	...
1422	maksssksksss799.png	86	239	131	284	0.914433	with_mask
1423	maksssksksss799.png	30	64	46	80	0.914345	with_mask
1424	maksssksksss799.png	317	248	333	265	0.897670	with_mask
1425	maksssksksss799.png	340	248	365	274	0.892757	with_mask
1426	maksssksksss799.png	304	209	324	230	0.858823	with_mask

1427 rows × 7 columns

np.unique(onnx_results_df['class'], return_counts=True)

(array(['mask_weared_incorrect', 'with_mask', 'without_mask'], dtype=object),
 array([  27, 1175,  225]))

np.unique(results_df['class'], return_counts=True)

(array(['mask_weared_incorrect', 'with_mask', 'without_mask'], dtype=object),
 array([  27, 1175,  225]))

n = 2
visualize_results(results.xyxy[n], paths[n])

ONNX Runtime

import onnxruntime

img = Image.open(paths[0]).convert('RGB')
img = img.resize([640, 640])
img_data = np.array(img, dtype='float32')
img_data /= 255
img_data = np.transpose(img_data, [2, 0, 1])
img_data = np.expand_dims(img_data, 0)

session = onnxruntime.InferenceSession('yolo.onnx')

out = session.run(None, {'images': img_data})

out[0][0][0]

array([     4.2146,      4.5375,      10.314,      15.986,  8.6725e-06,     0.70093,    0.045178,     0.29705], dtype=float32)

out[0][0]

array([[     4.2146,      4.5375,      10.314, ...,     0.70093,    0.045178,     0.29705],
       [     12.776,      5.6764,      24.198, ...,     0.54898,    0.055967,     0.36242],
       [     18.681,      4.3331,      33.507, ...,     0.56105,    0.037742,     0.44891],
       ...,
       [     570.95,      606.44,      347.01, ...,     0.29749,     0.24229,     0.22642],
       [     586.69,      603.72,      209.62, ...,     0.38223,     0.17725,     0.24477],
       [     607.63,      607.44,      283.05, ...,     0.31305,     0.22977,     0.26856]], dtype=float32)

df = pd.DataFrame(out[0][0])
df = df.rename(columns={0:'xmin', 1:'ymin', 2:'xmax', 3:'ymax', 4:'confidence', 5:'with_mask', 6:'mask_weared_incorrect', 7:'without_mask'})
df

	xmin	ymin	xmax	ymax	confidence	with_mask	mask_weared_incorrect	without_mask
0	4.214570	4.537497	10.313617	15.985667	8.672476e-06	0.700935	0.045178	0.297051
1	12.776090	5.676386	24.197996	15.200418	2.652407e-06	0.548981	0.055967	0.362423
2	18.680874	4.333120	33.507317	12.852788	2.145767e-06	0.561048	0.037742	0.448910
3	26.508099	4.274238	35.192181	12.477221	9.238720e-07	0.632332	0.032041	0.417051
4	33.960983	4.160562	35.272701	11.803977	5.662441e-07	0.651438	0.028722	0.364463
...	...	...	...	...	...	...	...	...
25195	493.527527	604.938293	866.446777	790.824097	7.003546e-06	0.018933	0.558842	0.431098
25196	523.272339	603.406799	581.229065	550.291077	3.099442e-06	0.162965	0.322442	0.236716
25197	570.945251	606.444519	347.007294	260.588562	1.093745e-05	0.297493	0.242286	0.226423
25198	586.689819	603.715576	209.623520	170.480194	1.293421e-05	0.382226	0.177253	0.244768
25199	607.628784	607.436646	283.054199	238.678299	3.635883e-06	0.313055	0.229774	0.268563

25200 rows × 8 columns

# Non-Maximun Suppression が必要になる

---

# !unzip -q test.zip

test_paths = sorted(glob('mask_data/test/*.png'))
len(test_paths)

10

test_paths[:3]

['mask_data/test/maksssksksss500.png',
 'mask_data/test/maksssksksss501.png',
 'mask_data/test/maksssksksss502.png']

files = []
for path in test_paths:
    img = Image.open(path).convert('RGB')
    buffered = BytesIO()
    img.save(buffered, format='JPEG')
    img_str = base64.b64encode(buffered.getvalue()).decode('utf-8')
    p = path.replace('test/images/', '')
    file = {
        'file': p,
        'img': img_str
    }
    files.append(file)
# json_images = json.dumps(file)

type(img_str)

str

with open('mask_data/test.json', 'w') as f:
    json.dump(files, f, indent=4)

---

with open('test.json') as f:
    test_dict_data = json.load(f)

len(test_dict_data)

300

file_names, images = [], []
for data in test_dict_data:
    file_names.append(data['file'])
    image_str = data['img']
    image_bytes = base64.b64decode(image_str.encode('utf-8'))
    image_bytesio = BytesIO(image_bytes)
    image = Image.open(image_bytesio)
    images.append(image)

len(file_names), len(images)

(300, 300)

file_names[:2]

['maksssksksss500.png', 'maksssksksss501.png']

# ONNX モデル読み込み
onnx_model = torch.hub.load(
    'ultralytics/yolov5',
    'custom',
    path='yolo.onnx',
    device='cpu')

# 推論
start = datetime.now()
onnx_model.eval()
with torch.no_grad():
    results = onnx_model(images)
end = datetime.now()
print('Runtime =', end-start)

# 結果格納
results_df = pd.DataFrame()
for p, n in zip(file_names, range(len(results))):
    df_ = results.pandas().xyxy[n]
    # p = p.replace('mask_data/test_answer/images/', '')
    df_.insert(0, 'file', p)
    results_df = pd.concat([results_df, df_])
results_df['xmin'] = results_df['xmin'].astype('int')
results_df['ymin'] = results_df['ymin'].astype('int')
results_df['xmax'] = results_df['xmax'].astype('int')
results_df['ymax'] = results_df['ymax'].astype('int')
results_df = results_df.drop('class', axis=1).rename(columns={'name': 'class'}).reset_index(drop=True)
results_df

Using cache found in /Users/taichinakabeppu/.cache/torch/hub/ultralytics_yolov5_master
YOLOv5 🚀 2022-4-28 torch 1.9.0 CPU

Loading yolo.onnx for ONNX Runtime inference...
Adding AutoShape...

Runtime = 0:01:14.502966

	file	xmin	ymin	xmax	ymax	confidence	class
0	maksssksksss500.png	111	231	212	370	0.958664	with_mask
1	maksssksksss501.png	44	37	117	126	0.951905	with_mask
2	maksssksksss501.png	160	47	220	122	0.950687	with_mask
3	maksssksksss501.png	353	64	400	132	0.949953	with_mask
4	maksssksksss501.png	302	52	349	117	0.943344	with_mask
...	...	...	...	...	...	...	...
1297	maksssksksss799.png	44	41	64	65	0.904429	with_mask
1298	maksssksksss799.png	85	238	133	283	0.899709	with_mask
1299	maksssksksss799.png	317	248	332	264	0.875682	with_mask
1300	maksssksksss799.png	304	211	324	229	0.867625	with_mask
1301	maksssksksss799.png	341	247	366	275	0.386450	with_mask

1302 rows × 7 columns

results_df.head(10)

	file	xmin	ymin	xmax	ymax	confidence	class
0	maksssksksss500.png	111	231	212	370	0.958664	with_mask
1	maksssksksss501.png	44	37	117	126	0.951905	with_mask
2	maksssksksss501.png	160	47	220	122	0.950687	with_mask
3	maksssksksss501.png	353	64	400	132	0.949953	with_mask
4	maksssksksss501.png	302	52	349	117	0.943344	with_mask
5	maksssksksss501.png	0	44	42	126	0.941737	with_mask
6	maksssksksss501.png	232	38	297	108	0.926159	with_mask
7	maksssksksss502.png	177	57	244	123	0.961261	without_mask
8	maksssksksss502.png	59	73	118	130	0.951826	without_mask
9	maksssksksss502.png	346	103	398	169	0.948219	with_mask

output = []
for file_name in file_names:
    out = {}
    out['file'] = file_name
    out['prediction'] = []
    df = results_df[results_df['file']==file_name]
    for index, row in df.iterrows():
        pred = {}
        pred['class'] = row['class']
        pred['xmin'] = row['xmin']
        pred['ymin'] = row['ymin']
        pred['xmax'] = row['xmax']
        pred['ymax'] = row['ymax']
        pred['confidence'] = row['confidence']
        out['prediction'].append(pred)
    output.append(out)

output[0]

{'file': 'maksssksksss500.png',
 'prediction': [{'class': 'with_mask',
   'xmin': 111,
   'ymin': 231,
   'xmax': 212,
   'ymax': 370,
   'confidence': 0.9586641788482666}]}

len(output[1]['prediction'])

6

# 書き出し
with open('output.json', 'w') as fp:
    json.dump(output, fp, ensure_ascii=False)

---

### init ###
import json
import base64
from io import BytesIO
import os
from datetime import datetime
from glob import glob
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
from PIL import Image, ImageDraw, ImageFont
import torch
import torch.onnx
import onnx
import onnxruntime

def create_data(INPUT_FILE_PATH):

    with open(INPUT_FILE_PATH) as f:
        test_dict_data = json.load(f)

    file_names, images = [], []
    for data in test_dict_data:
        file_names.append(data['file'])
        image_str = data['img']
        image_bytes = base64.b64decode(image_str.encode('utf-8'))
        image_bytesio = BytesIO(image_bytes)
        image = Image.open(image_bytesio)
        images.append(image)

    return file_names, images

def load_model(MODEL_FILE_PATH):
    model = torch.hub.load(
        'ultralytics/yolov5',
        'custom',
        path=MODEL_FILE_PATH,
        device='cpu')
    model.eval()
    return model

def predict(model, images):

    start = datetime.now()
    with torch.no_grad():
        results = model(images)
    end = datetime.now()
    print('Runtime =', end-start)

    return results

def create_output(file_names, results, OUTPUT_FILE_PATH):
    results_df = pd.DataFrame()
    for p, n in zip(file_names, range(len(results))):
        df_ = results.pandas().xyxy[n]
        # p = p.replace('mask_data/test_answer/images/', '')
        df_.insert(0, 'file', p)
        results_df = pd.concat([results_df, df_])
    results_df['xmin'] = results_df['xmin'].astype('int')
    results_df['ymin'] = results_df['ymin'].astype('int')
    results_df['xmax'] = results_df['xmax'].astype('int')
    results_df['ymax'] = results_df['ymax'].astype('int')
    results_df = results_df.drop('class', axis=1).rename(columns={'name': 'class'}).reset_index(drop=True)

    output = []
    for file_name in file_names:
        out = {}
        out['file'] = file_name
        out['prediction'] = []
        df = results_df[results_df['file']==file_name]
        for index, row in df.iterrows():
            pred = {}
            pred['class'] = row['class']
            pred['xmin'] = row['xmin']
            pred['ymin'] = row['ymin']
            pred['xmax'] = row['xmax']
            pred['ymax'] = row['ymax']
            pred['confidence'] = row['confidence']
            out['prediction'].append(pred)
        output.append(out)

    return output

INPUT_FILE_PATH = 'test.json'
MODEL_FILE_PATH = 'yolo.onnx'
OUTPUT_FILE_PATH = 'output.json'

def main():
    print('Start processing')
    file_names, images = create_data(INPUT_FILE_PATH)
    model = load_model(MODEL_FILE_PATH)
    results = predict(model, images)
    output = create_output(file_names, results, OUTPUT_FILE_PATH)
    # 書き出し
    with open(OUTPUT_FILE_PATH, 'w') as fp:
        json.dump(output, fp, ensure_ascii=False)
    print(' ')
    print('File export is complete')

if __name__ == '__main__':
    main()

Start processing

Using cache found in /Users/taichinakabeppu/.cache/torch/hub/ultralytics_yolov5_master
YOLOv5 🚀 2022-4-28 torch 1.9.0 CPU

Loading yolo.onnx for ONNX Runtime inference...
Adding AutoShape...

Runtime = 0:01:56.070969

File export is complete

with open(OUTPUT_FILE_PATH) as f:
    data = json.load(f)

data[0]

{'file': 'maksssksksss500.png',
 'prediction': [{'class': 'with_mask',
   'xmin': 111,
   'ymin': 231,
   'xmax': 212,
   'ymax': 370,
   'confidence': 0.9586641788482666}]}
